Vehicle Brake Controller

IDB (Integrated Dynamic Brake) is an integrated electronic brake that generates braking pressure
by operating the pressure piston directly to the motor and that replaces the existing vacuum booster.
It is an integrated brake system including all functions of ESC.

Visual image of Vehicle Brake Controller title Visual image of Vehicle Brake Controller title

Product

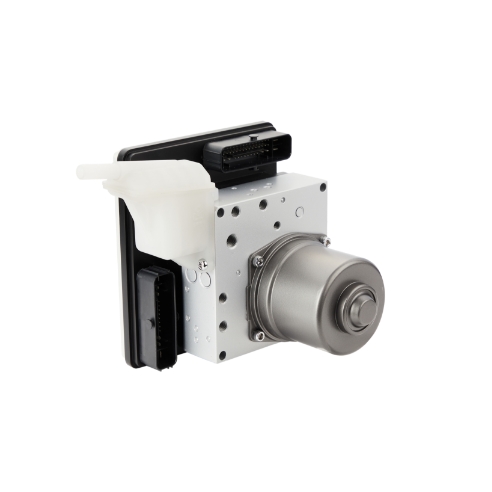

Vehicle Brake Controller_product image_01
Previous
Next

Key Feature

Safety Design for
Autonomous Driving
Improved
Braking Performance
OTA
(Wireless Update Function)

Specifications

ESC,IDB specifications
ESC IDB
MCU 1 Core / 200MHz 2 Core / 300MHz
Motor Type DC BLAC
Number of Valves 12 15
Weight 2kg 5.3kg
OTA N/A Available
Temp. Range -40 ~ +125°C
Comm. Interface CAN-FD
  • ESC: Electronic Stability Control
  • IDB: Integrated Dynamic Braking
